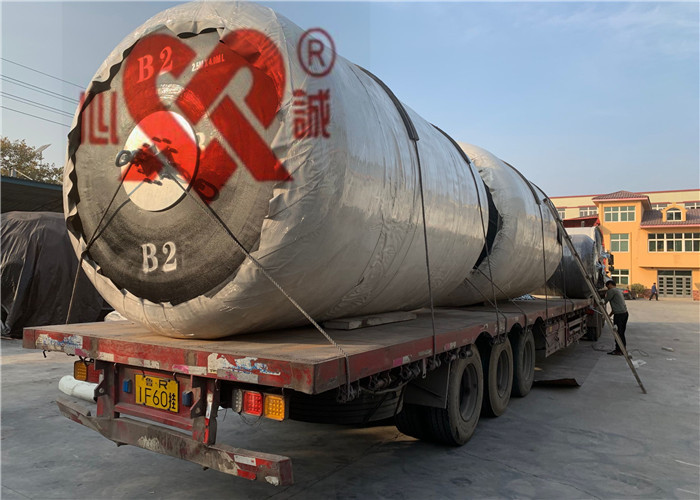

Ship To Ship Protection Eva Foam Fender , Floating Solid Foam
Fender
foam fender or Polyurethane Foam Filled Marine Fenders share a construction
technology centred on a closed cell EVA foam core and an outer skin
of reinforced SPUA (spray polyurea) elastomer. The closed cell foam
structure makes punctures a thing of the past. Every cell is
separate and so water cannot migrate into the foam. Even after many
years active service, the foam core can be returned to the factory,
re-skinned and made ready for a new lease of life.
Structures
Inner layer: Filled with Closed-cell EVA foam plastics core to absorb elastic
energy, which never sink;
Middle layer: Outer rubber and high strength polyamide cord fabric are adopted
to better seal the inner EVA foam;
Outer layer: Spraying with adjustable new polyurea elastic maerial, the
polyurea coating is permanent and that protect the outer layer of
fender from chemical corrosion resistance. It has more durability
than rubber because it can reduce the chance of denting and
scratches and will not get soften or fragile in hot or cold
temperature;
Ends: Equipped with galvanized flange, swivel and can add a protective
layer consist of chain and tire net;
Tyre net sheath: Receiving special treatment, the tyres all have the advantages of
firmness, durability and a beautiful surface, which can extend the
fender's service life. The structural form of the sheaths can be
divided into chain & tyre net, rope & tyre net, wire & tyre net,
chain & rubber hose net, etc, and all can be produced as per
client's special request.
Advantages of foam fender
1. Good floatability makes the installation site not affected by
tidal range.
2. Non-pneumatic operation, free from scratch and fiction,seawater
corrosion resistance and high salt-alkalia tolerance, longer
service life up to 15 years without regular maintenance.
3. Higher safety factor, free from explosion risk.
| SIZE(D*L) | Deflection 60% | Weight(±3%) |
| (mm) | Reaction force(KN) | Enery absorption(KJ) | kg |
| 300×500 | 43 | 5 | 7 |
| 400×800 | 54 | 7 | 10 |
| 500×1000 | 89 | 32 | 23 |
| 700×1500 | 129 | 24 | 85 |
| 1000×1500 | 190 | 62 | 175 |
| 1000×2000 | 298 | 80 | 240 |
| 1200×2000 | 335 | 110 | 350 |
| 1350×2500 | 460 | 173 | 550 |
| 1500×3000 | 615 | 263 | 770 |
| 1700×3000 | 678 | 330 | 1075 |
| 2000×3500 | 940 | 535 | 1530 |
| 2000×4000 | 1095 | 630 | 1980 |
| 2000×4500 | 1250 | 690 | 2500 |
| 2300×4000 | 1380 | 735 | 2885 |
| 2300×5500 | 1860 | 1133 | 3480 |
| 2500×4000 | 1455 | 980 | 3390 |
| 2500×5500 | 1960 | 1230 | 3985 |
| 3000×5000 | 2180 | 1755 | 5350 |
| 3000×6000 | 2455 | 1960 | 6680 |
| 3300×4500 | 1960 | 1760 | 5750 |
| 3300×6500 | 3075 | 2830 | 8400 |
| 3500×7000 | 3975 | 3162 | 10100 |
| 4500x9000 | 19650 | 7660 | 21450 |
