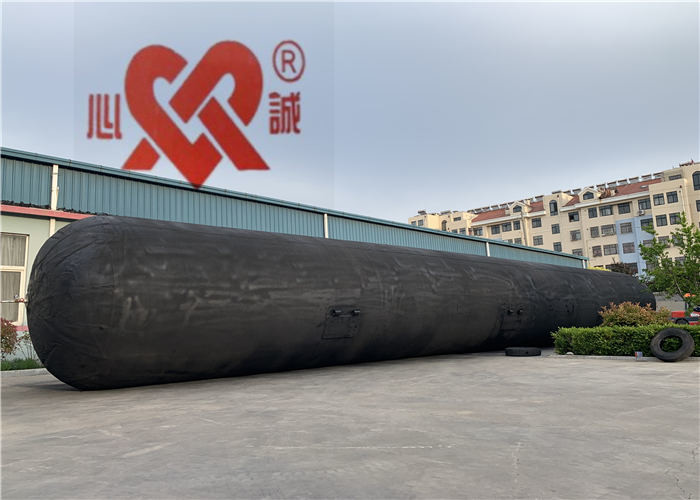

Vessle Pneumatic Air Bags , Boat Lift Air Bags With CCS Certificate
Marine Airbags for ship launching/landing/ slipping:
Marine Ship airbags are also known as air balloon, inflatable bags,
roller bags, air lifting bags, salvage bags. Standard air bag size
range is 0.8m to 2.0m diameter, with lengths up to 18.0m 'effective
length' and even more.
1) Outer Rubber Layer
The outer rubber layer that covers the outside of marine airbag to
protect under layers from abrasion and other external forces. This
compound has sufficient tensile and tearing strength to withstand
any condition and hard usage.
2) Inner Rubber Layer
The inner rubber layer seals pressurized air inside marine airbags.
3) Synthetic-Tire-Cord Layer as Reinforcement
The reinforcement cord layers, which are made of
synthetic-tire-cord commonly used in tires, are arranged at ideal
angles to hold the internal pressure and distribute stress evenly.
So they can provide strong efficient reinforcement.
Specifications:
1. The standard specification of airbags.
You can choose the required diameter and effective length to meet
your projects.
*Diameter (D): from 0.8m to 2.0m.
*Effective Length (EL): from 6m to 18m.
*Total Length (TL): from 7m to 19.5m
The above specifications only are our standard specifications
arrange. Can be supplied customized size upon customers’ request.
2. The standard number of layers
The number of layers, which mean the number of Synthetic-tyre-cord
layer, usually, our airbags contain 4, 5, 6, 7, 8, 9 layers types.
Other type is still available upon your request to confirm the
Safety Working Pressure.
Some normal sizes of our marine airbags, other sizes are also
available |
Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
1.0 | 10 | 5~6 | 0.07~0.10 |
1.0 | 12 | 5~6 | 0.07~0.10 |
1.0 | 15 | 5~6 | 0.07~0.10 |
1.2 | 10 | 5~6 | 0.08~0.12 |
1.2 | 12 | 5~6 | 0.08~0.12 |
1.2 | 15 | 5~6 | 0.08~0.12 |
1.5 | 12 | 5~8 | 0.08~0.16 |
1.5 | 15 | 5~8 | 0.08~0.16 |
1.5 | 18 | 5~8 | 0.08~0.16 |
1.5 | 20 | 4~8 | 0.08~0.16 |
1.5 | 24 | 5~8 | 0.08~0.16 |
1.8 | 12 | 5~8 | 0.08~0.15 |
1.8 | 15 | 5~8 | 0.08~0.15 |
1.8 | 18 | 5~8 | 0.08~0.15 |
1.8 | 20 | 5~8 | 0.08~0.15 |
1.8 | 24 | 5~8 | 0.08~0.15 |
2.0 | 18 | 6~10 | 0.08~0.18 |
2.0 | 20 | 6~10 | 0.08~0.18 |
2.0 | 24 | 6~10 | 0.08~0.18 |
2.5 | 18 | 7~10 | 0.07~0.13 |
2.5 | 20 | 7~10 | 0.07~0.13 |
2.5 | 24 | 7~10 | 0.07~0.13 |
FAQ
1."I have ships but don't know how to choose the size of Inflatable
Marine Rubber Airbag for Ship Launching Made in China?
Answer: Don't worry .We have more than 20 years' experience. Pls
tell me information of your ship, we can suggest suitable size for
you.
2."I want to try your Inflatable Marine Rubber Airbag for Ship
Launching Made in China, but I never use it and don't know how to
use ,can you help me?"
Answer: Don't worry. We will send instruction book together with
Inflatable Marine Rubber Airbag for Ship Launching Made in China.
3."What's your MOQ?"
Answer: Our MOQ is 1PC.
4."How about the lifespan of your Inflatable Marine Rubber Airbag
for Ship Launching Made in China?"
Answer: Designed lifespan of our Inflatable Marine Rubber Airbag
for Ship Launching Made in China is 6 to 10 years
5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the
repairment or replace the new ones for you if it proved to be our
quality problem.
6."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
