Inflatable Ship Launching Airbag , Air Lifting Bags For Maritime
Projects
Marine rubber airbag is an innovative product of Chinese own
proprietary intellectual property rights. It has wide application
like ship launching & upgrading, caisson lifting & moving, heavy
weights lifting, underwater-engineering buoyancy aid. The marine
rubber airbag is not limited to space and heavy machinery, which
could efficiently shorten the construction period and save lots of
funds.
Marine Rubber Airbag also known as rubber airbag, ship air bags,
ship launching airbag, ship salvage airbag, boat salvage airbags,
inflatable airbag, ship lifting bag, air balloon, made by rubber &
multi layer of rubber-dipped tyre fabric.

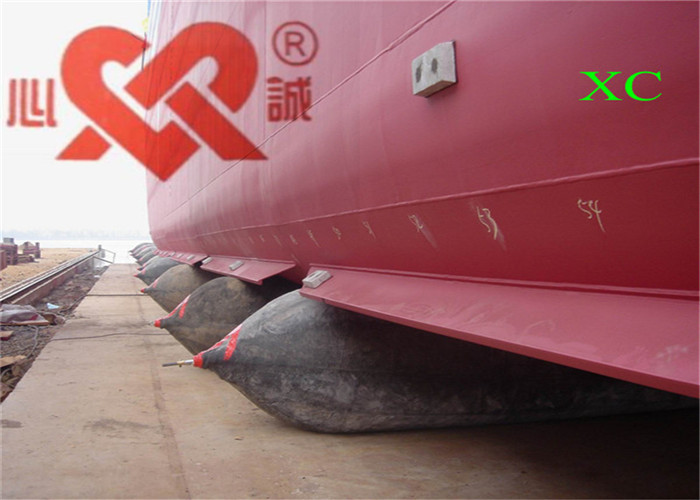

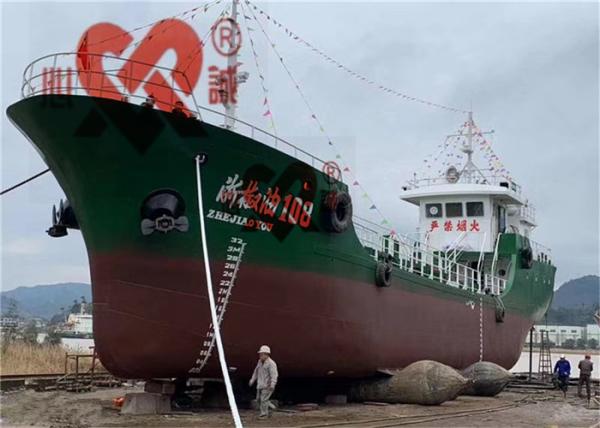

Marine Rubber Airbag are widely used in launching and landing ship/
boat/vessel, lifting and moving heavy goods, salvaging stranded
boats.
Marine Rubber Airbag are very popular with shipyard, ship owner,
and marine supplies company now.
Features
● Different airbag size stock available, quick delivery
● Provide repair kit and on site instruction
● Long time service life can be reused many times
● Wear resistance and anti aging
● Good raw material and cord fabric
● Do no harm to the environment. Time & money saving
● Need no more than air compressors, winches and ropes
● Marine airbags are much cheaper and portable than other methods
Xincheng rubber is one of the earliest manufacturers of ship
airbag, our products can totally meet the ISO 14409 standard. It is
able to carry 200000 DWT ship launching, lead and innovate the
relevant safety technology of ship airbag in ship discharge and
launching. Compared with the traditional launching method, the
Marine airbag is of great environmental protection, because the
Marine airbag can assist the ship launching at any seaside, so
there is no need to worry about the construction of launching
facilities. We once produced a 35-meter long airbag for the launch
of the Indonesian customer, which broke the record of 33 meters at
that time. Our Marine airbags enjoy a high reputation all over the
world, not only in Asia but also in Africa, the Middle East,
Oceania, South America and North America.
Some normal sizes of our Marine Rubber Airbag, customized sizes are
also available
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
For price quotes - please answer the following questions:
1. Type of vessel?
2. LOA (length) of ship?
3. Width of vessel?
4. Vessel's actual launched weight (gravity weight)/weight without
cargo?
5. What is the vessel's DWT?
6. Type of ground ship is built on? (Dirt, concrete, etc.)
7. Depth in meters of the water where the ship first enters the
water?
8. What's the angle degree of slipway? (Land, not under water)
9. Please provide the low/high tide schedule at site.
10. The working height? (The block stand height under the vessel)
11. Distance from bottom of propeller to the water level?
12. Distance from back of vessel (in dry dock) to the water entry
point?
