Solid Foam Dock Foam Boat Fender Marine Rubber Foam Fender For Boat

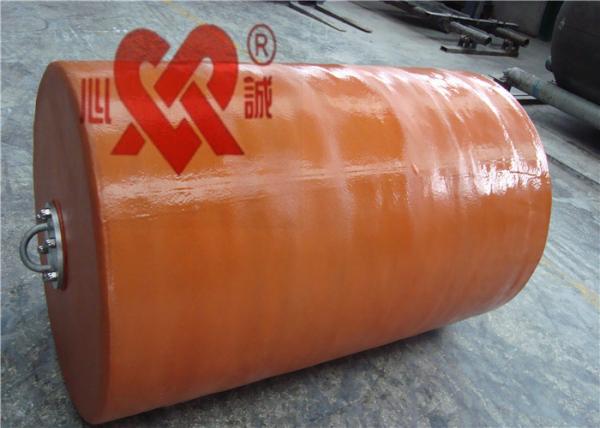

1, Foam filled fender is also called polyurethane fender, floating
fender, EVA fender
2, Foam filled fender is a compression fender, which is made of
polyurea material as outer protective layer and EVA foaming
material as buffer medium. In the process of use, the impact energy
of the ship can be absorbed through its compression deformation, so
as to reduce the damage to the wharf and the ship.
3,polyurethane fender, the biggest characteristics of the floating
fender is: with strong floating performance, not affected by tidal
range; Bright color, can be provided according to user requirements
of various colors; The use process does not need to inflate, with
safety and maintenance free; Adopt flange connection, installation,
movement, convenient and flexible.
4, The EVA fender reaction from small to large and high energy
absorption, suitable for wharf, special tidal difference wharf and
two ships on the sea to receive ship, barge and other use, has been
widely used in wharves, docks, ships, etc.
Foam filled fender and floating fender are also divided into two
types: with protective cover and without protective cover:
The jacket tires are divided into: ordinary car tires, truck tires,
airplane tires; Aircraft tires have the most wear resistance (but
the cost is relatively high), the chain used by the jacket,
shackles must be hot-dip galvanized; Protective tubes shall be
covered outside the chain to protect the chain and the hull from
damage.
Common colors: black, navy gray, white, orange (also can be made
according to the user's needs of other colors)
advantages:
Enhancing Port Ability
The adoption of super size foam filled marine fenders enlarged the
space between the ships and parapet of the wharf, and improves the
depth of the berth, consequently improves the ability of
loading/unloading, so as to create a new approach for upgrading the
wharfs and improved the handling efficiency.
Wear Resistant
The polyurethane or is spray applied on foam filled marine fenders.
This creates a high quality and homogeneous skin matrix combining
extreme wear resistance with non-marking properties and the option
of high visibility colors.
High Energy, Low Reaction
The high elasticity of expanded ensures high energy absorption with
low reaction force of foam filled marine fenders, which is
essential to eliminate the risk of damage to the vessel hull.
Unsinkable
Foam Filled Marine Fenders are entirely made of closed cell foam
that guarantees unsinkability even in case of damage caused by
breaking, rupturing or shearing when hitting rough vessel sides.
Ever cell is separate and so water cannot migrate into the foam
filled marine fenders.
Strong Reinforcement
The foam filled marine fenders skin is constructed of tough and
thick , which provides foam filled marine fenders with unsurpassed
strength. The skins is wrapped in a helix pattern and integrated
within the skin itself. This advanced technique process makes our
foam filled marine fenders skin extremely durable to all weather,
forces and marine conditions.
● Good Hydrophobicity
● High Performance of Outer Coating Layer
● Fast and Easy Installation
● Multiple Color Options
● Multiple Form & Size Options
● High energy absorption capability and lower reaction force.
| SIZE | Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 300 | 500 | 38 | 1.8 |
| 400 | 800 | 56 | 2.6 |
| 500 | 1000 | 71 | 3.8 |
| 600 | 1000 | 95 | 5 |
| 700 | 1500 | 150 | 24.5 |
| 1000 | 1500 | 205 | 49 |
| 1000 | 2000 | 274 | 64 |
| 1200 | 2000 | 337 | 93 |
| 1200 | 2400 | 405 | 129 |
| 1350 | 2500 | 514 | 172 |
| 1500 | 3000 | 624 | 216 |
| 1700 | 3000 | 807 | 260 |
| 2000 | 3500 | 990 | 456 |
| 2000 | 4000 | 1163 | 652 |
| 2500 | 4000 | 1472 | 1044 |
| 2500 | 5000 | 1609 | 1228 |
| 3000 | 5000 | 2050 | 1412 |
| 3000 | 6000 | 2460 | 1695 |
| 3300 | 6500 | 2665 | 1836 |
