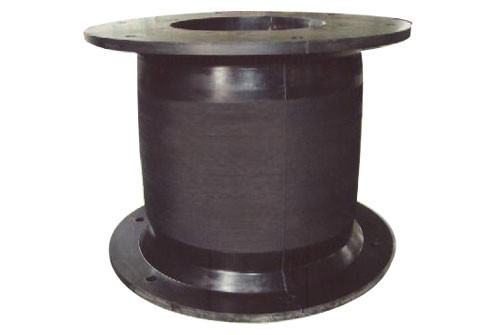

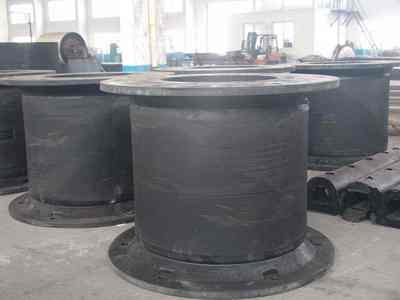

Cell Rubber Fenders, also known as drum fenders, feature compressed drum-shaped structures for providing high force absorption and being little influenced by touches from berthing vessels at bevel angles. With simple but efficient geometry structure, cell fenders are extremely durable and stable especial where harsh berthing movements may be present.

Feature:
1.Low reaction force and high capability of energy absorption;
2.Due to its structure, the product has the charcateristic of higher force absorption, and longer useage life;
3. With front panel

Applications:
1. Frontal berthing is fixed on frontal fender in an effort to alleviating stress acted upon sides of ship. According to specific
demand, surface stress can drop to as low as 25t/m2. Thus, it is particularly suitable for berthing of large vessels.
2. Owing to high reaction force energy absorption per unit, it is can excellently meet the requirements of open sea wharf and
dolphin type berth.

Description:

1. On the basis that counterforce do not increase, if deflection distance augments by 13%, energy absorption will rise by 17%
while counterforce energy absorption ratio (E/R·H) of each unit will go up by 15%.

Competitive Advantage:

* Wide range of sizes

* High efficiency

* Good angular performance

* Modular design

* Well proven design

* PIANC tested and certified

Specification:

NOTE: Other size of fenders are also available follow customer’s requests.

Performance :
