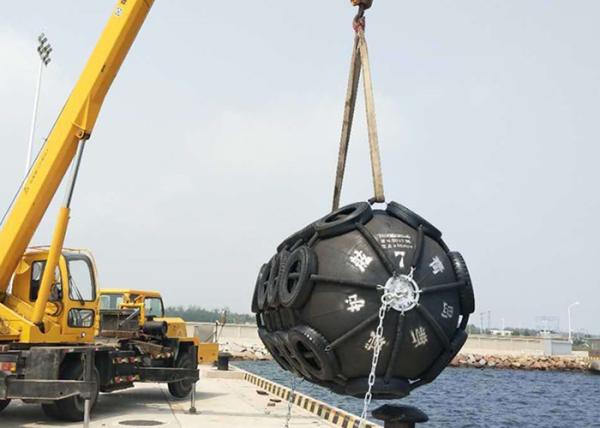

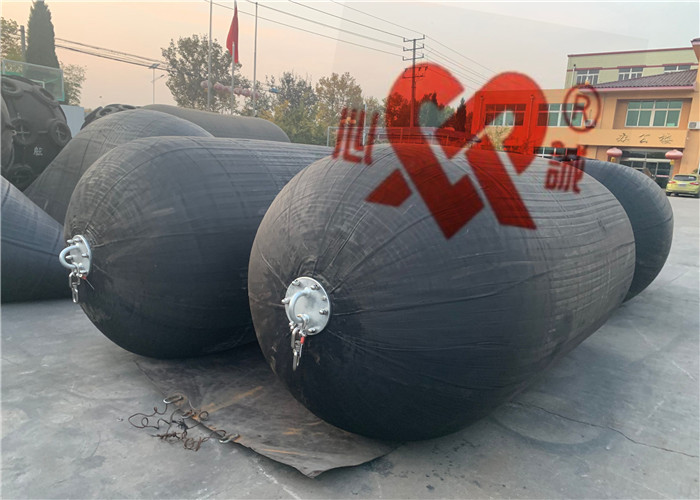

3.3m diameter dock bumper fender cylindrical floating fender for
ship
Pneumatic rubber fenders have a long and successful history of
protecting vessels in mooring operations. They are ideal for
permanent and semi-permanent port applications and for offshore
ship-to-ship transfers. Tough and resilient, Xincheng Marine
System’s fenders are fast and easy to deploy, maintaining large
clearances between the hull and the jetty or other vessel. This
serves to minimise damage potential during mooring.
The structure of Rubber Pneumatic Fenders:
The outer rubber layer protects the cord layer and inner layer from
abrasion and other external forces. This compound has sufficient
tensile and tear strength to withstand any weather condition and
hard usage
The cord layers are arranged at ideal angles to hold the internal
pressure and to distribute the stress evenly. The fenders cord
layer is constructed by means of integrative twine technology and
consists of polyamide fiber with high tensile stress, so that the
fenders have unique strength and uniformity in different
directions.
The inner rubber layer seals the air inside, utilizing a compound
with airtight quality.Pneumatic Rubber fender description Yokohama
rubber fender is intended to be used for the berthing and mooring
of a ship to another ship or berthing structure. It also specifies
the test and inspection procedures for high-pressure floating
Pneumatic Rubber Fender.
Flange opening:The metal parts at both ends of fender,to which an
air valve or safety valve can be adapted.
FAQ
1."I have ships but don't know how to choose the size of dock bumpers
,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls
tell me information of your ship, we can suggest suitable pneumatic fender size and quantity for you.
2."I want to try your pneumatic fender, but I never use it and don't
know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with dock bumpers.
3."What's the MOQ of your dock bumpers?"
Answer: The MOQ of our dock bumpers is 1PC.
4."What's the lifespan of your dock bumpers?"
Answer: Designed lifespan of our dock bumpers is 6 to 10 years
5."What's the warranty period of your dock bumpers?"
Answer: The warranty period of our dock bumpers is 2 years. we will responsible for the repairment or replace the
new dock bumpers for you if it proved to be our quality problem.
6."What kind of certificate can you provide for dock bumpers?"
Answer: CCS, SGS BV LR RS etc. certificate is available for our dock bumpers
How to choose the right size fender
A船舶(DWT) A vessel(DWT) | B船舶(DWT) B vessel(DWT) | 假定接舷速度(m/s) ASSumed speed Access side(m/s) | 有效运动能量(kJ) Effectirve kinetic energy
| 护舷尺寸(D*L) Fender Dimension (D*L) |
| 300,000 | 200,000 | 0.15 | 1230 | 3.3*6.5 |
| 150,000 | 0.15 | 1030 | 3.3*6.5 |
| 100,000 | 0.15 | 781 | 3.3*6.5 |
| 200,000 | 150,000 | 0.15 | 882 | 3.3*6.5 |
| 100,000 | 0.15 | 693 | 3.3*6.0 |
| 85,000 | 0.15 | 618 | 3.0*5.0 |
| 100,000 | 85,000 | 0.17 | 617 | 3.0*5.0 |
| 50,000 | 0.18 | 511 | 3.0*5.0 |
| 40,000 | 0.20 | 544 | 3.0*5.0 |
| 50,000 | 40,000 | 0.20 | 425 | 2.5*5.5 |
| 30,000 | 0.22 | 437 | 2.5*5.5 |
| 20,000 | 0.25 | 443 | 2.5*5.5 |
| 20,000 | 15,000 | 0.27 | 318 | 2.5*4.0 |
| 10,000 | 0.30 | 309 | 2.2*3.5 |
| 5,000 | 0.35 | 253 | 2.0*3.5 |
| 10,000 | 5,000 | 0.35 | 212 | 2.0*3.5 |
| 3,000 | 0.40 | 196 | 2.0*3.5 |
| 1,000 | 0.50 | 137 | 2.0*3.0 |
