rubber floating pneuamtic fender high energy absorption yokohama
fender for ship to dock
Pneumatic rubber fender is a prevailing style of anti-collision
device for marine use in the worlld of today.When the ship contacts
to ship or berthing facilities, its protective effect against
collision is better than that of conventional fenders made of solid rubber
fender, due to compressed air used as amortization medium. Having the advantages of large energy
absorption, it could be applied extensively to large tankers, LPG vessels,ocean platforms,large
docks and harbor wharves,etc to protect ship's side.
Construction of pneumatic fender
Pneumatic Fenders are constructed of three vulcanized layers each
providing an important function in the construction and lifespan of
the fender. The three layers are
(1) the inner rubber layer
The inner rubber seals pressurised air inside the fender. It is
usually constructed of a compound similar to that of an inner tube
in a truck or car tyre to ensure a good level of air tightness.
(2) the tyre-cord layers of reinforcement
Synthetic tyre-cord layers have proven to be the best option for
strong, efficient reinforcement for pneumatic rubber fenders. Each
layer is coated with a rubber compound on both sides that prevents
contact between the layers, reducing friction and wear during
bending, compression and stretching. The same compound isolates
each thread within the layer.This greatly improves the ability of
the fender to hold pressure, fatigue resistance and endurance life.
Other reinforcing layer materials such as canvas have wear points
that significantly reduce the life off the fender.
(3) the outer rubber layer.
The tough abrasion resistant outer rubber is designed to protect
the inner rubber and tyre-cord layers from damaging external
forces. The material has mechanical properties to withstand the
arduous operational conditions for which it is designed.
Advantages of pneumatc fender

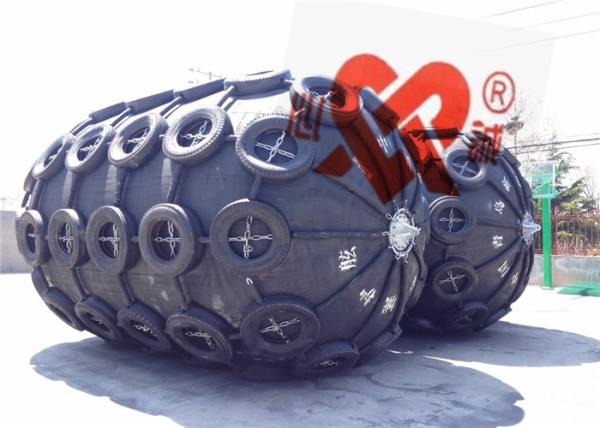

1.Outer chain and tire net Our Marine pneumatic rubber fender consist of a superior external
chain
and tire net constructed exclusively with car tires, heavy-duty rubber
tubing and chains that are connected at every intersection with a shackle. This is the key element in the
our pneumatic rubber
ball unsurpassed strength and resilience.
2.Fender skin Our pneumatic rubber fender skin is constructed of tough and thick
nylon filament reinforced
polyurethane skin. The skin also has a nylon tire cord applied in a
helix pattern during the coating that embeds
the filament into the skin. This advanced process makes our pneumatic rubber skin extremely durable to all
weather, forces and marine conditions.
3.Air tightness Our pneumatic rubber fender has a great air tightness and cannot be
ruptured. The air inflation
and sealing fabrication process make our pneumatic rubber ball bear high pressure, which means our rubber
ball superior in quality, durability and function.
4.Installation Pneumatic rubber fender is filled with the air which reduced the
weight of the ball itself so that it
could be installed simply.
size
D×L(m) | Initial pressure(Po) is 0.05MPa | Initial pressure (Po) is 0.08MPa |
Weight
kg | R(kN) | GEA(KJ) | Weight
kg | R(kN) | GEA(KJ) |
| 0.5×1.0 | 25 | 64 | 6 | 25 | 83 | 8 |
| 0.6×1.0 | 32 | 74 | 8 | 32 | 96 | 11 |
| 0.7×1.5 | 50 | 137 | 17 | 50 | 178 | 24 |
| 1.0×1.5 | 80 | 182 | 32 | 80 | 235 | 44 |
| 1.0×2.0 | 100 | 257 | 45 | 125 | 335 | 63 |
| 1.2×2.0 | 120 | 297 | 63 | 165 | 386 | 86 |
| 1.35×2.5 | 165 | 427 | 102 | 226 | 554 | 140 |
| 1.5×3.0 | 315 | 597 | 153 | 370 | 751 | 211 |
| 1.7×3.0 | 405 | 639 | 191 | 436 | 830 | 263 |
| 2.0×3.5 | 590 | 875 | 308 | 632 | 1138 | 424 |
| 2.5×4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5×5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0×5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 |
| 3.0×6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 |
| 3.3×4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3×6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3×6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
Height: the height of rubber fendernon- coxcombing,
Inaccuracy of weight: ±10% Inaccuracy of reaction force: ±10% |
