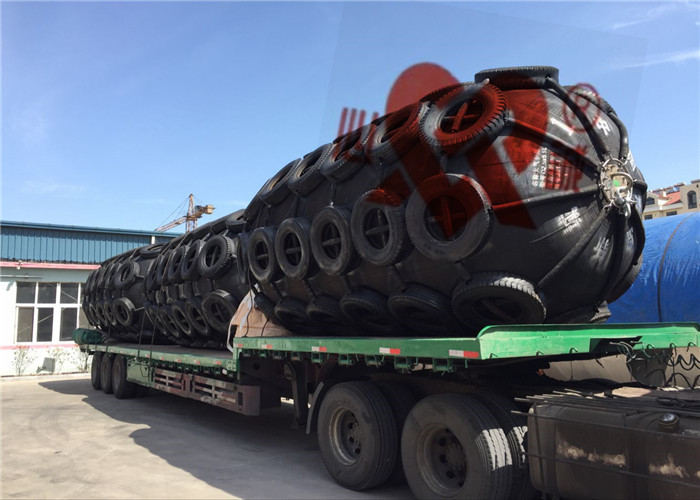

Ship Dock Fender With Tyres And Chain Around Pneumatic Fender On Vessle

yokohama fender uses compressed-air as medium to absorb the energy from impact. The sides of ships are softer when berthing, so the result of collision-avoiding is achieved. Compared with traditional bumper-style rubber fender, it has the following features, absorbing greater impact, less reverse impact on the ships, easy installation, more elasticity, not being bent out of shape under pressure, less weigh and practical and economical. So pneumatic fender has widespread application on oil tankers, container vessels, luxury yachts, ocean platforms, larges shipyards, military ports and larger underwater foundations of bridges, etc.

Pneumatic Fenders are suppiled with two different inside pressure levels to cover a wide performance range.

Pneumatic Fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 9,000 mm, as well as special sizes. All sizes are available as sling-type or with a heavy duty chain & tire net

The Pneumatic rubber fender also be certified by CCS, DNV, ABS, SGS and BV.

The Advantages of Pneumatic rubber fenders:

1 Safe for excess load.

The reaction force of floating fenders does not increase sharply even under excess load. Therefore, these fenders perform extremely well under such conditions and, as a result, protect ships and mooring facilities.

2 No deterioration or Variation in performance

Because pneumatic fenders use the compressive elasticity of air, there is no performance deterioration due to fatigue. The performance of these fenders remains unchanged at extremely low temperatures, even below -50℃.

3 Safety and reliability

Pneumatic rubber fenders are constructed using several layers of strong type cord and are therefore extremely resistant to pressure and cutting. The larger sizes (2.5m dia upward) are fitted with a safety valve to prevent accidents in event of over compression.

4 Simply and low cost installation

The weight of the fender is supported by the water on which it floats. Fenders can, therefore, be moored simply by means of a guy rope or chain at minimal cost. They can be removed easily to another position when not in use and transferred to alternative mooring points as required.

Accessories and After-sales

• We can provide 2 years free-maintenance for free.
• We provide 1 set repair kit and materials for free.
• Each pneumatic fender we provide inflatable tube with all inflatable accessories.
• As long as it is the product quality problems even more than two years we can repair for free.

• Normal size Diameter x Length	Initial Internal pressure 0.05MPa			Initial Internal pressure 0.08MPa
  	Guaranteed Energy Absorption(GEA)	Reaction Force At GEA(RF)	Hull Pressure At GEA(PR)	Guaranteed Energy Absorption(GEA)	Reaction Force At GEA(RF)	Hull Pressure At GEA(PR)
  mm x mm	KN/M	KN	Kpa	Kpa	Kpa	Kpa
  500x1000	6	64	132	8	83	174
  600x1000	8	74	126	11	96	166
  700x1500	17	137	135	24	178	178
  1000x1500	32	182	122	44	235	161
  1000x2000	45	257	132	63	335	174
  1200x2000	63	297	126	86	386	166
  1350x2500	102	427	130	140	554	170
  1500x3000	153	579	132	211	751	175
  1700x3000	191	639	128	263	830	168
  2000x3500	308	875	128	424	1138	168
  2500x4000	663	1381	137	925	1815	180
  2500x5500	943	2019	148	1317	2653	195
  3000x5000	965	1815	148	1341	2359	198
  3300x4500	1175	1884	130	1640	2476	171
  3300x6500	1814	3015	146	2532	3961	191
  NOTE:1.REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10% 2.WEIGHT TOLERANCE IS ±10% 3.SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEED






FAQ
Q1:What's the material of your products?

A:Our raw material is natural rubber, and rubber-dipped nylon cord fabric

Q2:Are you factory or trading company?

A:We are the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.

Q3:Can you do OEM?

A:Yes,we can do.As long as receive your request,we could produce accordingly.

Q4:What's your delivery time and payment terms?

A:Delivery time is according to customers' size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q5:How can I get samples from you?

A:We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.

Floating Pneumatic Fender

What is a pneumatic fender?
What is a Yokohama fender?
How much does a Yokohama fender weight?
What are marine fenders?
Why is it called Yokohama fender?
What are ship fenders?

Qingdao Xincheng Rubber Products co., Ltd as a Professional manufacturing Company, which was estabished in 1986. The Company is a production, scientific research and design, product development, technical services for the integrated enterprise.

The Company is mainly produce marine rubber airbags and pneumatic rubber fenders , Foam filled fenders and other rubber fenders etc, which as the leading enterprise has passed the certification of CCS , ISO9001:2008, SGS, BV etc.

Since the 2000, the Company has accumulated a lot of production experience in the field of marine rubber airbags and fenders, which has bring together a large number of professional design and production technical personnel. The Company always adhere to improve product quality and customer service. In 2011, "China top 10 rubber products production enterprise" and "China rubber seal products production top ten best-selling famous brand"; In 2013 won the China shipbuilding industry group outstanding product suppliers. For now, our products has selled to all over the world, include Southeast Asia, Russia, Middle East South America and EU countries etc.
