ISO17357 Certificated Yokohama Marine Fenders,Pneumatic Rubber
Fender
Pneumatic rubber fender is the advanced anti-collision device for
marine application in the world. Pneumatic Rubber Fender also known
as floating fender or Yokohama type rubber fender, it is often
installed on the terminal or ship, which aims to absorb or reduce
the collision energy between ship to ship and ship to dock. This
kind of product can protect the ship or dock from the damage of
collision. With inner compressed air, it can float on the water and
widely used as protecting medium equipment. Size : D0.5 m x L1.0 m
~ D 3.3 x L6.5m. "XINCHENG" Pneumatic rubber fenders are produced
in strict accordance with the ISO17357-2002 and GB/T 2002-2002
international quality standard, our products have exported to all
over the world.
Compared to traditional solid rubber fender, pneumatic has
following advantages
1. Big energy/ impact absorption capacity, small reaction force to
ships
2. Easy and fast installation
3. Higher elasticity. It doesn’t get deformation under compression
4. Light weight
5. Economical and practical
a. Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect
skeleton material and inner rubber ball from damage of external
force, the main features: high strength, wear resistance, ageing
resistance and tear resistance.
b. Synthetic cord reinforced rubber layer
Reinforced cord rubber layer is composed of winding Synthetic cord
layer, It is mainly used for maintain the internal air pressure,
which has good elasticity, no deformation and high power etc.
c. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air
leakage and control the ball pressure.
d. End Flange
The metal parts at both ends of fender, which can be fitted with
charging valve and safetyvalve.
Normal size Diameter x Length | Initial Internal pressure 0.05MPa | Initial Internal pressure 0.08MPa |
Guaranteed Energy Absorption(GEA)
| Reaction Force At GEA(RF) | Hull Pressure At GEA(PR) |
Guaranteed Energy Absorption(GEA)
| Reaction Force At GEA(RF) | Hull Pressure At GEA(PR) |
| mm x mm | | KN | Kpa | | Kpa | Kpa |
500x1000 | 6 | 64 | 132 | 8 | 83 | 174 |
600x1000 | 8 | 74 | 126 | 11 | 96 | 166 |
700x1500 | 17 | 137 | 135 | 24 | 178 | 178 |
1000x1500 | 32 | 182 | 122 | 44 | 235 | 161 |
1000x2000 | 45 | 257 | 132 | 63 | 335 | 174 |
1200x2000 | 63 | 297 | 126 | 86 | 386 | 166 |
1350x2500 | 102 | 427 | 130 | 140 | 554 | 170 |
1500x3000 | 153 | 579 | 132 | 211 | 751 | 175 |
1700x3000 | 191 | 639 | 128 | 263 | 830 | 168 |
2000x3500 | 308 | 875 | 128 | 424 | 1138 | 168 |
2500x4000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
2500x5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
3000x5000 | 965 | 1815 | 148 | 1341 | 2359 | 198 |
3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
NOTE:1.REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10% 2.WEIGHT TOLERANCE IS ±10% 3.SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEEDS |
Tyre-chain Protective Jacket Type Pneumatic Fender

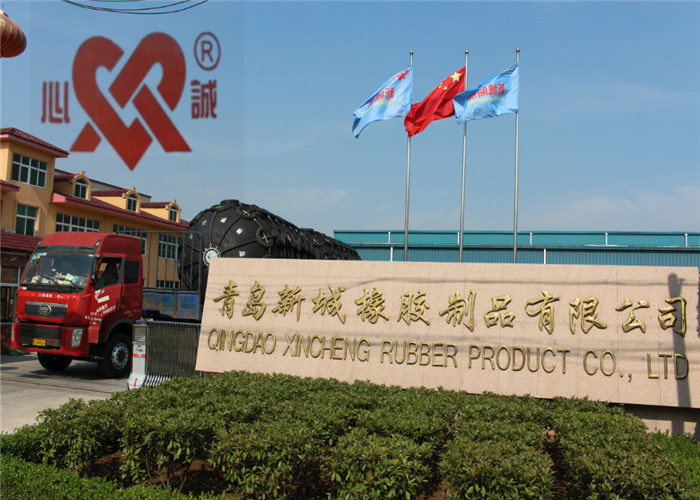

Qingdao Xincheng Rubber Products Co., Ltd, as a Professional
manufacturing Company, which was founded in 1986. The Company is a
production, scientific research and design, product development,
technical services for the integrated enterprise.
The Company is mainly produce pneumatic rubber fenders , marine
rubber airbags , foam filled fenders and other rubber fenders etc,
which as the leading enterprise has passed the certification of CCS
, ISO9001:2008, SGS, BV etc.
Since the 2000, the Company has accumulated a lot of production
experience in the field of marine rubber airbags and fenders, which
has bring together a large number of professional design and
production technical personnel. The Company always adhere to
improve product quality and customer service. In 2011,China top 10
rubber products production
enterprise" and "China rubber seal products production top ten
best-selling famous brand"; In 2015,Company won the China
shipbuilding industry group outstanding product suppliers. For now,
our products have exported to all over the world, such as Southeast
Asia, Middle East, South America and EU countries etc.
