Professional Marine Rubber Ship Airbags For Vessel Launching Or Landing

Ask Lasest Price
Brand Name :	XINCHENG
Model Number :	*D1.815m L**
Certification :	SGS CCS LR RS BV ISO9001
Price :	$200-6000/piece
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	150PCS per month
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

Professional Marine Rubber Ship Airbags For Vessel Launching Or Landing

High Quality China Professional Marine Rubber Ship Air Bags For Vessel Launching Or Landing

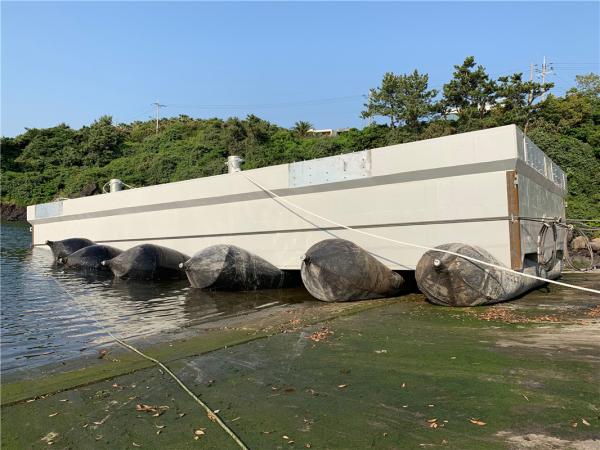

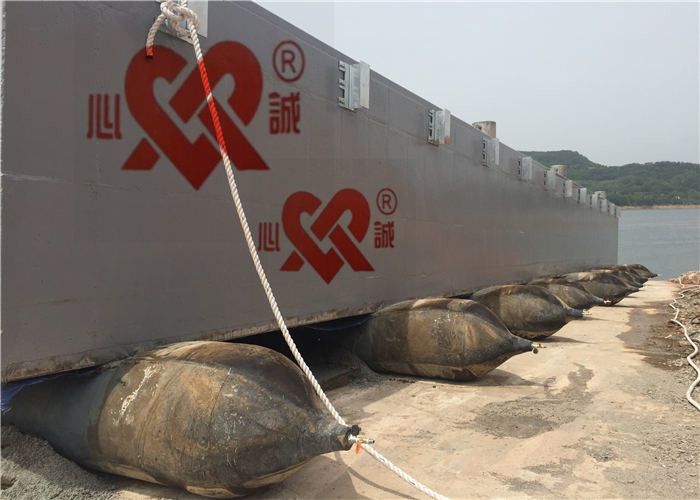

ship rubber airbag comply with ISO 14409. Ship airbag can be used to launch and upgrade a ship up to 100,000DWT. Comparing to the traditional slipway launching method, the ship launching airbags are much environmental, because ship airbag can launch a ship at any seaside, so there's no need to worry about the construction of launching facilities. besides, the marine airbags need little maintenance and can be used repeatedly.

Professional Marine Rubber Ship Airbags For Vessel Launching Or Landing

Xincheng rubber is one of the earliest manufacturers of ship airbag, our products can totally meet the ISO 14409 standard. It is able to carry 200000 DWT ship launching, lead and innovate the relevant safety technology of ship airbag in ship discharge and launching. Compared with the traditional launching method, the Marine airbag is of great environmental protection, because the Marine airbag can assist the ship launching at any seaside, so there is no need to worry about the construction of launching facilities. We once produced a 35-meter long airbag for the launch of the Indonesian customer, which broke the record of 33 meters at that time. Our Marine airbags enjoy a high reputation all over the world, not only in Asia but also in Africa, the Middle East, Oceania, South America and North America.

Standard size of Marine Rubber Airbags:
Diameter (D): 0.8m-2.0m
Effective length (EL): 6.0m-18m
Total Length (TL): 7m-20m
Cord layers: 4,5,6,7,8,9,10, layers

Diameter(m)		1.0	1.2	1.5	1.8	2.0
Medium Pressure (4-5)	Test Pressure	0.14-0.16	0.12-0.14	0.10-0.12	0.08-0.10	0.07-0.09
Medium Pressure (4-5)	Working Pressure	0.12-0.14	0.10-0.12	0.08-0.10	0.07-0.09	0.06-0.08
High Pressure (6-8)	Test Pressure	0.22-0.26	0.20-0.24	0.15-0.20	0.13-0.16	0.12-0.15
High Pressure (6-8)	Working Pressure	0.20-0.24	0.17-0.22	0.13-0.18	0.11-0.14	0.10-0.13

For price quotes - please answer the following questions:

1. Type of vessel?
2. LOA (length) of ship?
3. Width of vessel?
4. Vessel's actual launched weight (gravity weight)/weight without cargo?
5. What is the vessel's DWT?
6. Type of ground ship is built on? (Dirt, concrete, etc.)
7. Depth in meters of the water where the ship first enters the water?
8. What's the angle degree of slipway? (Land, not under water)
9. Please provide the low/high tide schedule at site.
10. The working height? (The block stand height under the vessel)
11. Distance from bottom of propeller to the water level?
12. Distance from back of vessel (in dry dock) to the water entry point?

Professional Marine Rubber Ship Airbags For Vessel Launching Or Landing

Product Description

1. Introduction

Marine inflatable bags are designed using principle of rolling wood. "XINCHENG" inflatable buoyance bags choose the whole intertwine technology to make rubber airbags on the structure more reasonable, has higher safety coefficient and bearing capacity. Size : D0.5 m x L6.0 m ~ D 2.5 x L25m. "XINCHENG" boat air lifting bags are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.
Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

2. Marine Air bag Material

Choosing the best quality from imported natural rubber, such as Thailand and Malaysia smoked sheet rubber and 3L natural rubber, which has good elasticity, ageing resistance and not take offer layer. Meanwhile, efficient stabilizer is used to make rubber more environmental friendly and no cracks.

Our marine rubber airbag is using 3 strands synthetic-tyre-cord, which tensile strength can be 31kgs, that make our airbags much higher bearing capacity and safety.

Synthetic-tyre-cord

1. Wrap threads that run vertically through the synthetic tyre-cord pattern.

2. Weft threads that run perpendicular to the warp threads

3. Marine inflatable buoyance bags Structure

Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

4. Advantage

1. Advanced manufacturing technology

2. Best imported natural rubber from Thailand and Malaysia

3. Safety and reliability

4. Good air tightness

5. Saving labor and cost

6. Long using time

5. Application

1. Ship launching and landing

2. Heavy lifting and moving

3. Ship salvage rescue project
Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

6. Standard size of inflatable air lifting bags:

Diameter (D): 0.8m-2.0m

Effective length (EL): 6.0m-18m

Total Length (TL): 7m-20m

Cord layers: 4,5,6,7,8,9,10, layers

Diameter(m)		1.0	1.2	1.5	1.8	2.0
Medium Pressure (4-5)	Test Pressure	0.14-0.16	0.12-0.14	0.10-0.12	0.08-0.10	0.07-0.09
Medium Pressure (4-5)	Working Pressure	0.12-0.14	0.10-0.12	0.08-0.10	0.07-0.09	0.06-0.08
High Pressure (6-8)	Test Pressure	0.22-0.26	0.20-0.24	0.15-0.20	0.13-0.16	0.12-0.15
High Pressure (6-8)	Working Pressure	0.20-0.24	0.17-0.22	0.13-0.18	0.11-0.14	0.10-0.13

NOTE: Your custom size is accepted.

Our ship launching airbags has a warranty of 2 years after delivery. During warranty period, we are responsible to repair or
replace the airbags that can not be repaired in case the defect is of quality.

After-sale Service: we would like to provide the clients with free repair material: repair rubber, repair machine and heating
plate if they need.

Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

Qingdao Xincheng Rubber Products Co.,ltd was founded in 1986, mainly produces pneumatic rubber fenders, marine rubber
airbags, ship launching with airbags applications, foam filled fenders and other rubber fenders, which as the leading enterprise
has passed CCS , ISO9001:2008, SGS, BV certificates. We have established long time cooperation with many clients, from
Southeast Asia, Middle East, South America and EU countries and many other countries throughout the world.

Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

Pay less. And get more.

·High precision engineering using 3-strand cords with great tensile strength.
·Made from NEW industry leading quality rubber.
·Assurance of true number of layers.
·High-performance quality and above-industry-standard layer thickness.
·Quality detailing jobs, Ex: air valve length, ends' extra layering, tighter connection with minimal failure etc. These areas are
often neglected but extremely important to ensure your safety and maximise your return by prolonging useful life.

Do not be misled by suppliers who uses recycled rubber, weak cords with lower number of true layers and more. Top quality
XINCHENG airbags can be used up to 10 years, and in the long run, actually helps you save more!

Marine Boat Salvage Rubber Inflatable Buoyancy Bags Price

How to choose a suitable airbag for your ship???
The selection of airbag should follow the vessel dimensions, type and launching weight.

Airbag Diameter:
It should consider the height of docking blocks. In order to lift the ship safety, the airbag diameter must be higher
than docking blocks. Generally, it should be increased by 0.5m based on the black height. For example, if the
docking block height is 1.0m, the airbag diameter needs not less than 1.5m.

Airbag length:
It depends on the width of the vessel. The airbag effective length must be larger than the width of the vessel.
It will enhance the safety and steadiness of launching.

Airbag bearing capacity:

The most important factor of ship launching, it must be consider the airbag's bearing capacity, which must be
higher than the ship launching weight to guarantee launching process safety. So the numbers of layers will
decide the airbag's bearing capacity.

JUST TELL US YOUR VESSEL INFORMATION, WE WILL CHECK WHICH SIZE OF AIRBAG IS SUITABLE FOR YOU.
