Brand Name : | XINCHENG |
Model Number : | 50type 80type |
Certification : | SGS CCS LR BV RS ISO9001 |
Price : | $200-12000/piece |
Payment Terms : | MoneyGram, Western Union, MoneyGram |
Supply Ability : | 150PCS per month |
Delivery Time : | 15days |
SGS Certificate 50kpa Inflatable Pneumatic Marine Yokohama fender
Pneumatic rubber fender is the advanced anti-collision device for
marine application in the world. Pneumatic Rubber Fender also known
as floating fender or Yokohama type rubber fender, it is often
installed on the terminal or ship, which aims to absorb or reduce
the collision energy between ship to ship and ship to dock. This
kind of product can protect the ship or dock from the damage of
collision. With inner compressed air, it can float on the water and
widely used as protecting medium equipment. Size : D0.5 m x L1.0 m
~ D 3.3 x L6.5m. "XINCHENG" Pneumatic rubber fenders are produced
in strict accordance with the ISO17357-2002 and GB/T 2002-2002
international quality standard, our products have exported to all
over the world.
Compared to traditional solid rubber fender, pneumatic has following advantages

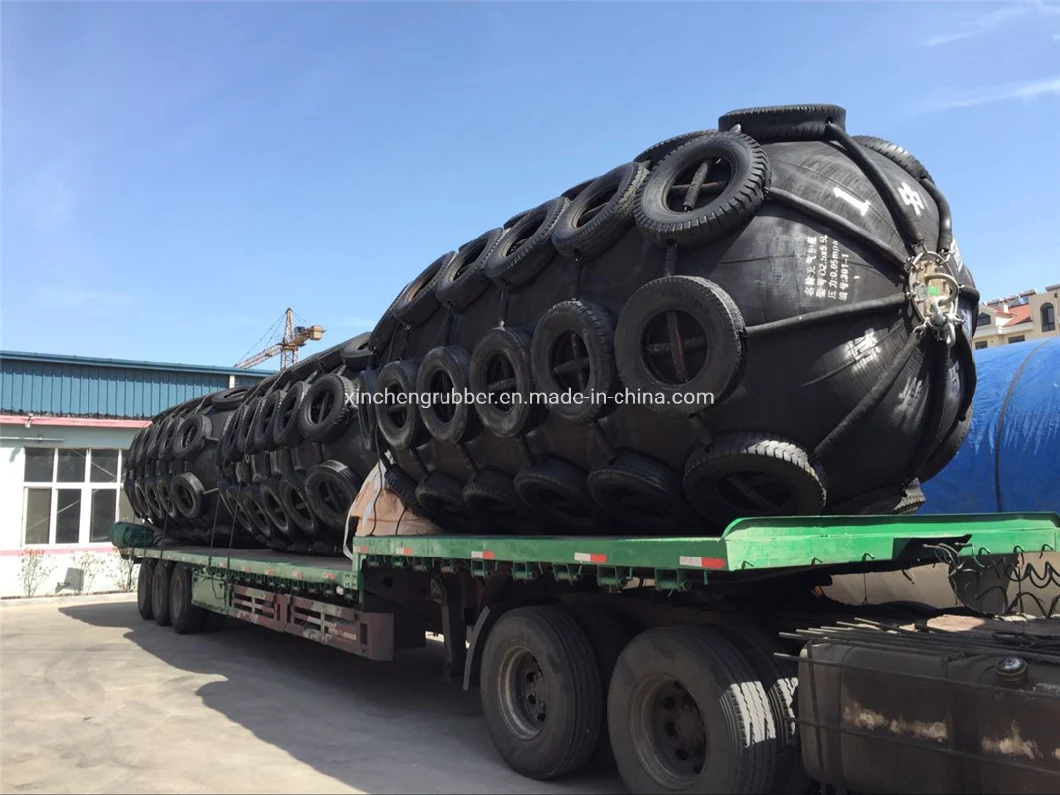

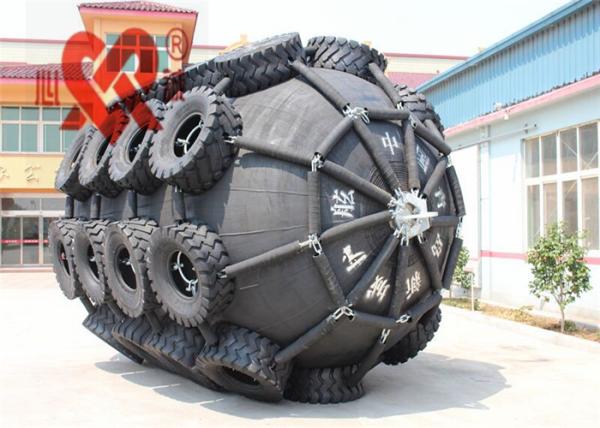

1. Net Type Pneumatic Fenders are covered with a chain net, wire net, or fiber net. Each end of
longitudinal chains, wires, or fibers is linked together with one
or two ring(s), which shall be connected with a guy chain or
guy-rope. Usually, these nets have used tires together with rubber
sleeves for additional protection to the fender body, except for
fiber net which has only rubber sleeves. Chain nets last longer
against corrosion, while wire nets are light and more easily
repaired.
2.Sling Type Pneumatic Fender is common type of Pneumatic Rubber Fenders. It is designed without
chain and tyre net. So its advantage is lower weight than
traditional chain and tyre net fenders. Meanwhile, Sling type
pneumatic fender commonly used for some small and medium size
vessel.
Floating Pneumatic Fenders' diameter is 500 mm to 4,500 mm at
maximum. The range of lengths are 1000 mm to 12,000 mm, as well as
special sizes. The sling-type or chain & tire net(CTN) are
available for both sizes.
a. Outer Rubber
Normal size Diameter x Length | Initial Internal pressure 0.05MPa | Initial Internal pressure 0.08MPa | ||||
Guaranteed Energy Absorption(GEA) | Reaction Force At GEA(RF) | Hull Pressure At GEA(PR) | Guaranteed Energy Absorption(GEA) | Reaction Force At GEA(RF) | Hull Pressure At GEA(PR) | |
mm x mm | KN/M | KN | Kpa | Kpa | Kpa | Kpa |
500x1000 | 6 | 64 | 132 | 8 | 83 | 174 |
600x1000 | 8 | 74 | 126 | 11 | 96 | 166 |
700x1500 | 17 | 137 | 135 | 24 | 178 | 178 |
1000x1500 | 32 | 182 | 122 | 44 | 235 | 161 |
1000x2000 | 45 | 257 | 132 | 63 | 335 | 174 |
1200x2000 | 63 | 297 | 126 | 86 | 386 | 166 |
1350x2500 | 102 | 427 | 130 | 140 | 554 | 170 |
1500x3000 | 153 | 579 | 132 | 211 | 751 | 175 |
1700x3000 | 191 | 639 | 128 | 263 | 830 | 168 |
2000x3500 | 308 | 875 | 128 | 424 | 1138 | 168 |
2500x4000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
2500x5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
3000x5000 | 965 | 1815 | 148 | 1341 | 2359 | 198 |
3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
NOTE:1.REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10% 2.WEIGHT TOLERANCE IS ±10% 3.SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEEDS |
