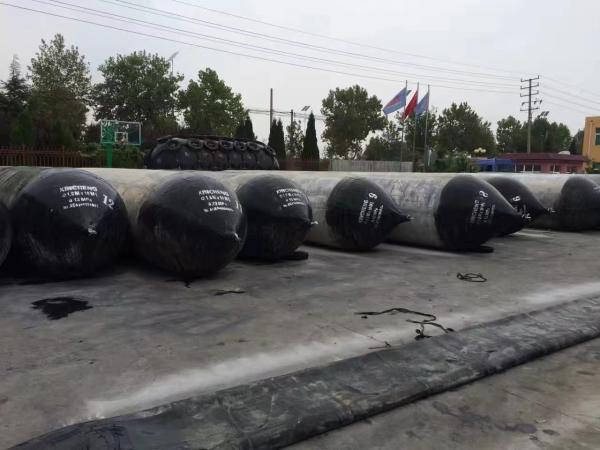

船用橡胶气囊技术参数书
MARINE RUBBER AIRBAGS SPECS
- 型号规格,性能要求 Technical specification
型 号 TYPE | 直径Diameter | 有效长度 Effective Length | 厚度 Thickness | 工作压力 Working pressure | 工作高度 Working Height | 每米承载力 Each capacity |
| D 1.5*15m L | 1.5m | 15m | 6 layers | 0.13Mpa | 0.5m | 20.83T/m |
| 0.6m | 18.75T/m |
| 0.7m | 16.66T/m |
| 0.8m | 14.58T/m |
工作环境 Working Environment | -30～70度 |
1.1 每条气囊都配备充气配件 (1个压力表,充气阀,充气管件,密封垫片,丝堵)
Each airbag fitted with end fittings (1PCS Pressure Gauge, Air
Control Valve, Inlet Nipple, Lifting Eye Bolt)
1.2气囊充气配件均采用热镀锌防腐处理,材质为Q235热镀锌,可放心使用
The airbag’s accessories are treated with hot-dip galvanization.
The material is Q235 hot-dip galvanization, which can be used with
confidence.
线形光顺,色泽一致,无裂纹,气泡,杂质,污垢或其他缺陷,颜色为黑色.
The appearance of an air bag shall be smooth glossy and without
blemish such as crack,blister , delamination, pits or impurities,
color: Black.
- 质量要求 Quality requirements
材质为天然混炼橡胶及锦纶帘线.
Material: Natural Rubber and Synthetic tyre cord
质保期为24个月,设计使用寿命为10-15年,质保期内出现质量问题供方负责保修包换,并及时做好相应的售后服务工作.
Warranty is 24 Month, design life is 10-15 years, during the
warranty period, the supplier is responsible for warranty
replacement and timely after-sales service.
4,生产标准 Production Standard
执行国际和国家标准和
Follow the international and country standard : ISO14409 &
CB/T3795-1996
提供产品合格证及出厂报告,如需CCS证书可安排检测.
Provide product test certificate, or CCS certificate available to
choose.
Rubber material requirements
| No | 测试项目 Test item | 参数 Required value | 测试标准 |
| 1 | 拉伸强度Tensile strength,MPa | ≥18 | ISO 37 |
| 2 | 延伸率Elongation at break, % | ≥400 | ISO 37 |
| 3 | 硬度Hardness, °(Shore A) | 60±10 | ISO 7619-1 |
| 4 | 撕裂强度Tear Strength, N/cm | ≥400 | ISO 34-1 |
| 5 | 经70℃ 96h 热空气老化试验后,橡胶的物理机械性能 After thermal ageing at 70℃±1℃, 96h
| 拉伸强度降低率Holding of pull lengthening, % | ≥80 | ISO 188 |
| 6 | 延长率Holding of elongation at break, % | ≥80 | ISO 188 |
| 7 | 硬度变化Change of hardness,°(Shore A) | ≤8 | ISO 7619-1 |
Figure 1. 锦纶帘线 Synthetic-tyre-cord
1. 经线垂直通过锦纶帘线层
Wrap threads that run vertically through the synthetic tyre-cord
pattern.
2. 纬线与经线垂直
Weft threads that run perpendicular to the warp threads.
Structure of Airbag:
8. 包装运输 Packing&Delivery
放气折叠后用捆扎包装
Pack airbag in bundles after air - release folding
9. 贮存Storage:
9.1 气囊较长时间不用时,应洗净晾干,内充外涂滑石粉,放置在室内干燥,阴凉,通风处.
When the airbags are not to be used for a long period of time, they
should be drained,cleaned,dried,filled with talc powder, and the
exterior surfaces should be coated with talc powder. The airbags
should be maintained in a dry,ventilated room and be protected from
light. The airbags should be stored in a relaxed condition free
from tension,compression or other deformation.
9.2 存放气囊的地方应远离热源.
The airbags should be kept away from any heat source.
9.3 气囊不能与酸,碱,油脂和有机溶剂接触.
The airbags should be protected from acids, alkalis, oils or
organic solvents.
9.4 气囊不用时应伸开平放,不得堆放,亦不得在气囊上堆压重物.
When airbag not in use, the air bag shall be spread out and placed
flat, and shall not be piled up, nor shall the weight be piled on
the air bag.
